4 Row Aluminum Radiator Shroud Fan Relay for 1960-1962 GMC Chevy Suburban C/K Series Apache C10 Panel Pickup Truck

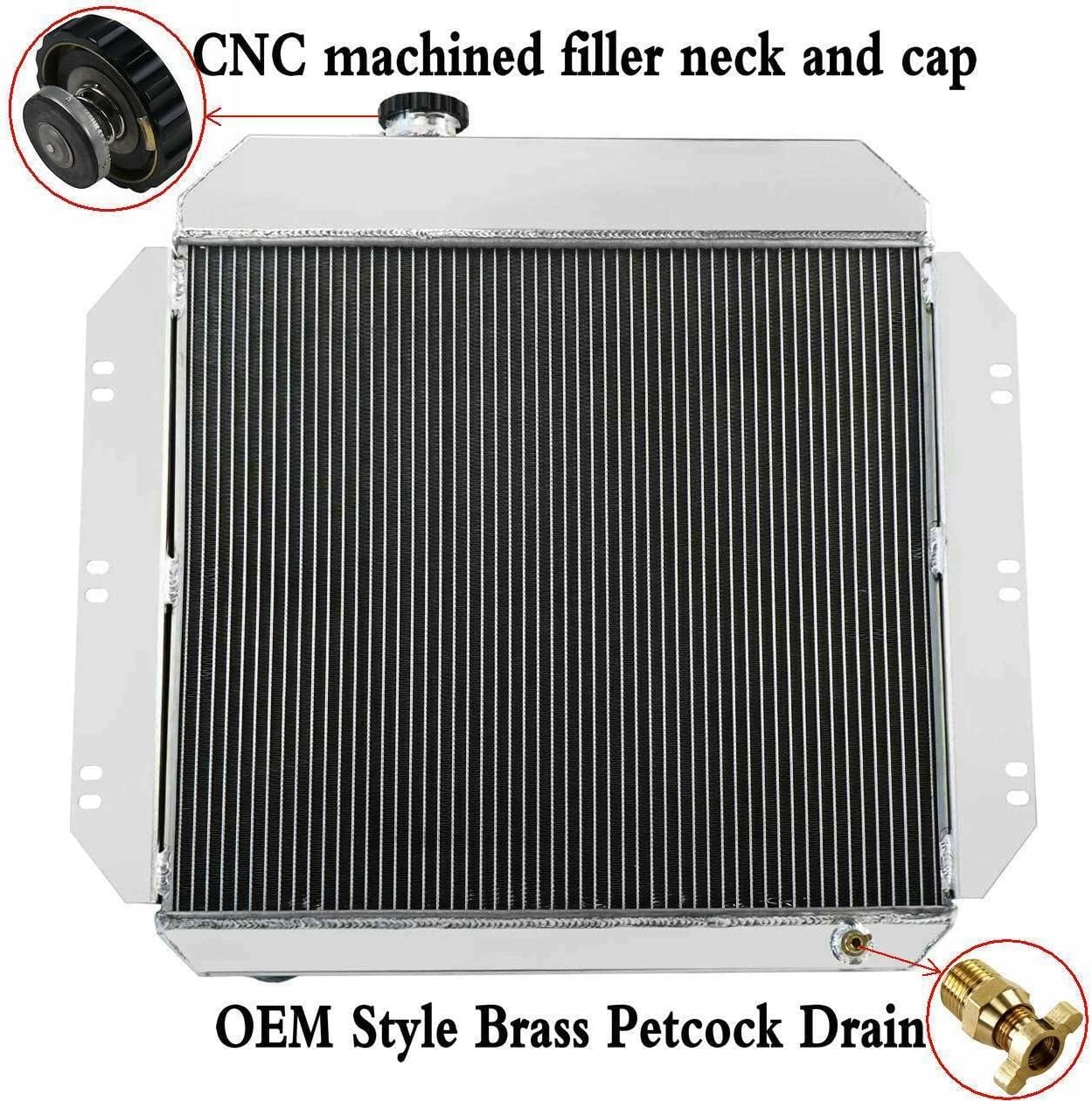

Fitment:For 1960 1961 1962 GMC Chevy Apache Pickup TruckFor Chevy Suburban GMC C10 Panel Pickup Truck V8 1960-1962For Chevy Suburban GMC C/K Series Pickup Truck V8 60-62Radiator Size:Meteral: Full AluminiumRadiator Core size: 4 Row CoreCore Dimensions: 18 7/8" High x 21 3/4" WideOverall Dimensions: 25" High x 26 5/8" WideUpper inlet: 1 1/2" located in center.Lower outlet: 1 3/4" located on passenger sideTrans Cooler: YESMounting Type: Bracket MountPlease Check the Size Before You Buy!OEM Style Brass Petcoke DrainCNC machined filler neck and capAircraft AA5052 grade aluminum and with raw aluminum finishFan Size：Maximum Fan CFM: 1730 cfmFan Diameter (in): 16.050"Thickness (in): 2.950"Number of Blades: 10 bladesMaximum Fan RPM: 2,250 rpmBlade Material: PlasticAmp Draw: 12.70 ampsIncludes the Mounting Tabs for an Easy Zip Tie InstallationThermostat Kit:Universal fit for any automotive vehicle and electric fan.Activates by grounding electric fans at preset temperature.180'F turn-on temperature, 165'F turn-off temperature.RED + connect directly to battery.WHITE wire to ignition switch power source.BLACK goes to thermos switch.BLUE wire goes to the Fans.This set up will run Fans & pull air in through radiator.

• 【Product specification】 Overall Size: 25" High x 26 5/8" Wide | Core Size: 18 7/8" High x 21 3/4" Wide | Overall Dimensions: 25" High x 26 5/8" Wide | Upper inlet: 1 1/2" located in center. | Lower outlet: 1 3/4" located on passenger side | Transmission Cooler: φ26*205*G1/4（Z)
• 【Vehicle Compatibility】For Chevy 1960-1962 C/K-Series Truck/Pickup/Panel/Suburban/C10/C20/C30/K10/K20 | Fits Models with 3.8L/ 6.7L l6/ V8 OHV Engines ONLY
• 【High-quality materials】It is constructed of high quality AA5052 aircraft grade aluminum construction to ensure an extremely long lasting operate life. AA5052 Aluminum is an Al-Mg alloy with good corrosion resistance, excellent reliability and cold workability and strength.
• 【Excellent design】The new design fan and the AA5052 fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine.
• 【Package Include】1 x 4-Row AA5052 Aluminum Radiator, 1 x CNC Machined Radiator Cap, 1 x AA5052 Aluminum Shroud, 1 x 16" Fans (Includes mounting kits), 1 x Thermostat Relay Ki
